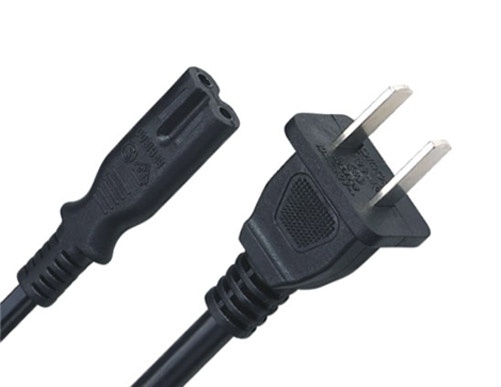

China CCC certified two prong molded power cord plug

China CCC certified two prong molded power cord plug
产品名称:China CCC certified two prong molded power cord plug
产品编号:PBB-10/QT2
详细说明:
GB 1002 China CCC certified two prong molded power cord plug.  Fully conforms to the GB1002-2008 and GB2099-1-2008 plug standards and designed for any two prong power cord for use in China.  Rated up to 10A 250V~.  Our GB 1002 China power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

Specifications

Items
Details
Connector Standard GB1002 and GB2099 2P plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals China CCC approval
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C7
 (IEC C7) China

down angle IEC C7
(IEC C7 down angle) USA


right angle IEC C7
(IEC C7) China



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² RVV + H03VVH2-F 10/250
