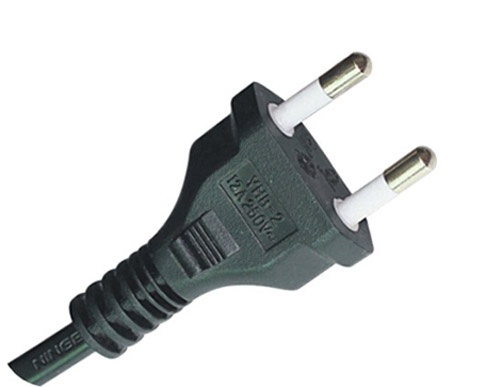

Brazil NBR 6147 Brazil 10A two prong power cord plug with InMetro certification |
|
| Product name : Brazil NBR 6147 Brazil 10A two prong power cord plug with InMetro certification |
| Item : D15 |
| Details : |
NBR 6147 Brazil two prong power cord plug with InMetro certification. Rated up to 10A 250V. Built to NBR 6147 standards and designed for any Brazil 2 prong power cords. Our Brazilian NBR6147 power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Our master distributor called Stay Online stocks Brazil NBR 6147 to IEC C7 cords in a 6 foot length. Just click the blue button to the left and select the desired cord.
Specifications
Items
Details
| Connector Standard |
Brazil NBR 6147 2P plug (same as CEE7/16 standard Euro 2P plug) |
| Maximum Current rating |
10A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 2 wires |
| Available Wire Thickness |
1.0mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Brazil INMETRO certificate# 07/UL-BRAP-0010 , German VDE license# 40005197 and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
right angle IEC C7
(IEC C7) Brazil
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
H03VVH2-F, H03VVH2-F |
10/250 |
| 1.00mm² |
H03VVH2-F, H03VVH2-F |
10/250 |
|
 |
