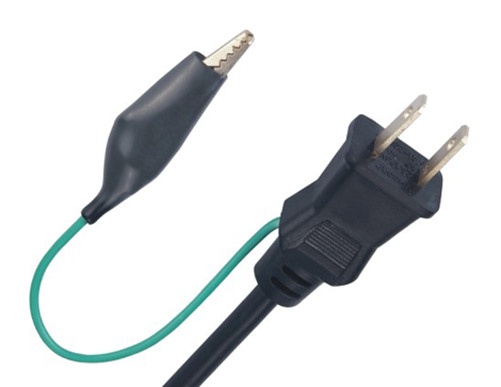

PSE certified Japan 2 prong power cord plug with ground strap |
|
| Product name : PSE certified Japan 2 prong power cord plug with ground strap |
| Item : QP5 |
| Details : |
PSE certified Japan 2 prong power cord plug with ground strap. Built to the JIS-C-8303 Japanese power cord plug standard. Rated up to 7A 125V, 12A 125V or 15A 125V. Our Japanese power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant
Specifications
Items
Details
| Connector Standard |
Japan JIS C 8303 2P plug with separate ground strap (same as USA NEMA 1-15P plug) |
| Maximum Current rating |
15A |
| Maximum Voltage |
125V |
| Number of Poles and Wires |
2 poles, 2 wires |
| Available Wire Thickness |
2.0mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Japan PSE JET certificate |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors
|
Cord Type
|
Electrical Rating (Amps/Volts)
|
| 0.75mm² |
VCTF, HVCTF |
7/125 |
| 1.25mm² |
VCTF, HVCTF |
11/125 |
|
 |
