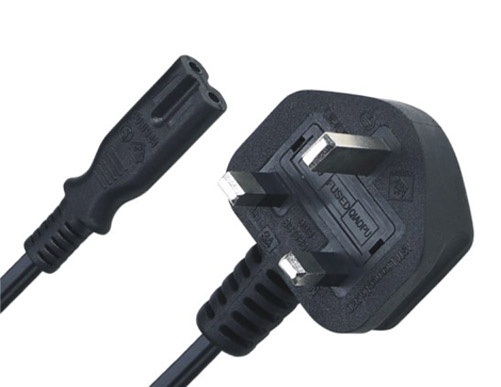

Singapore PSB Spring certified 2 prong IEC C7 power cord receptacle |
|
| Product name : Singapore PSB Spring certified 2 prong IEC C7 power cord receptacle |
| Item : QT2 |
| Details : |
Singapore PSB Spring certified 2 prong IEC C7 power cord receptacle. Built to the IEC 60320-C7 standard for use in Singapore and Malaysia. Rated up to 2.5A 250V. RoHS and REACH compliant.
Specifications
Items
Details
| Connector Standard |
IEC 60320 C7 |
| Maximum Current rating |
2.5A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 2 wires |
| Available Wire Thickness |
0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
ENEC certificate, German VDE |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
BS1363 fused 3 pin plug
Singapore
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
H03VVH2-F |
10/250 |
|
 |
