Argentina three prong power cord plug with IRAM

Argentina three prong power cord plug with IRAM

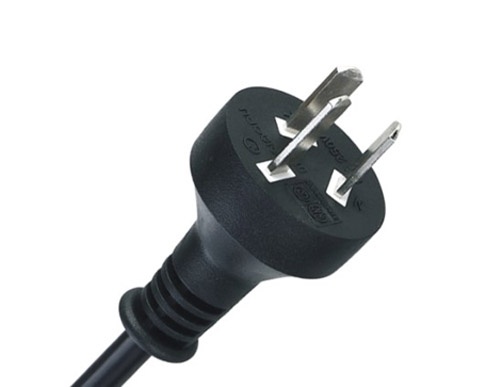

Product name : Argentina three prong power cord plug with IRAM
Item : D11
Details :

IRAM 2073 Argentina three prong power cord plug with IRAM and UL Argentina certifications.  Rated up to 10A 250V.  Our IRAM2073 Argentina power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

Specifications

Items
Details
Connector Standard Argentina IRAM 2073 3 pin plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.0mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals Argentina UL certificate
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C13
(IEC C13) Argentina

right angle IEC C13
(IEC C13) Argentina


IEC C5
(IEC C5) Argentina

right angle IEC C5
 (IEC C5) Argentina


left angle IEC C5
 (IEC C5) Argentina



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² RVV + H05VV-F 10/250
1.00mm² RVV + H05VV-F 10/250
