Argentina two prong power cord plug with IRAM

Argentina two prong power cord plug with IRAM

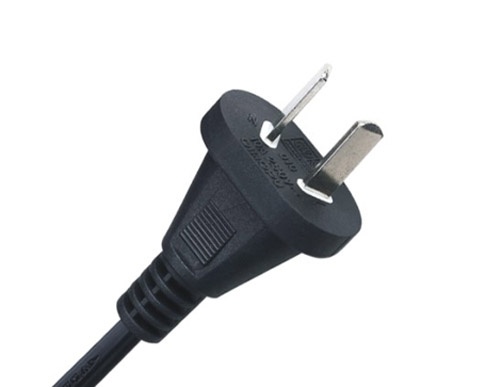

Product name : Argentina two prong power cord plug with IRAM
Item : D10
Details :

IRAM 2063 Argentina two prong power cord plug with IRAM and UL Argentina certifications.  Rated up to 10A 250V.  Our IRAM 2063 Argentina power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

Specifications

Items
Details
Connector Standard Argentina IRAM 2063 2 pin plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals Argentina UL certificate
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C7
 (IEC C7) Argentina

right angle IEC C7
 (IEC C7) Argentina



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H03VVH2-F 10/250
