IEC C13 power cord receptacle with VDE

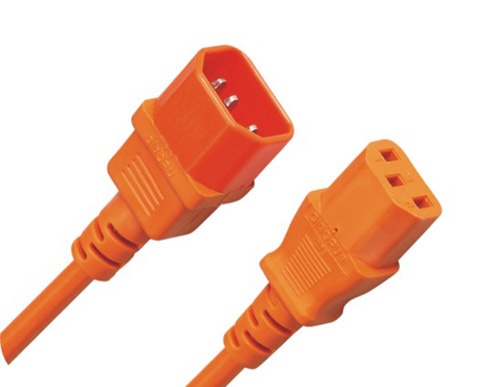

Product name : IEC C13 power cord receptacle with VDE
Item : QT3
Details :
IEC C13 power cord receptacle with all European country approvals including VDE. Built to the IEC 60320-C13 standard and appropriate for use in various European countries. Rated up to 10A 250V
Specifications
Items
Details
Connector Standard
IEC 60320 C13
Maximum Current rating
10A
Maximum Voltage
250V
Number of Poles and Wires
2 poles, 3 wires
Available Wire Thickness
1.5mm² through 0.75mm²
Outer Mold Material
50P PVC
Blade Material
Brass
Flamability Rating
UL 94V-0
color
black is standard but any color available
Temperature Rating
minus 40C though plus 75C
Approvals
ENEC certificate# 40029577, German VDE license# 40005197 and many others
Environmental Certifications
RoHS, REACH
Testing
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
