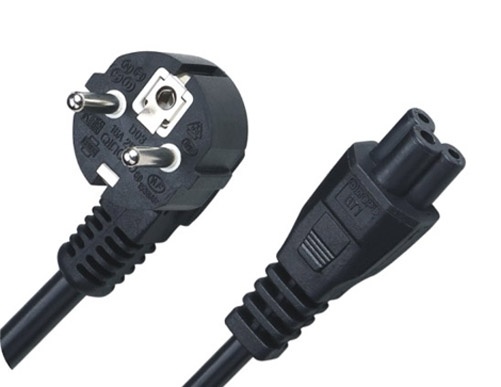

IEC C5 3 prong power cord receptacle with all European approvals |
|
| Product name : IEC C5 3 prong power cord receptacle with all European approvals |
| Item : D03/QT1 |
| Details : |
IEC C5 3 prong power cord receptacle with all European approvals including VDE and 12 others. Built to the IEC 60320-C5 standard. This IEC C5 power cord connector is also known as the cloverleaf or mickey mouse receptacle. Rated up to 2.5A 250V.
Specifications
Items
Details
| Connector Standard |
IEC 60320 C5 |
| Maximum Current rating |
2.5A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.0mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
ENEC certificate, German VDE license and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
CEE7/7 Schuko 3 pin down angle plug
CEE7/7 Schuko Europe
CEE7/7 Schuko 3 pin plug
(CEE7/7 Schuko) Europe
IEC C14 3 pin plug
(IEC C14) Europe
IEC C20 3 pin plug
(IEC C20) Europe
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
H05VV-F |
2.5/250 |
| 1.00mm² |
H05VV-F |
2.5/250 |
|
 |
