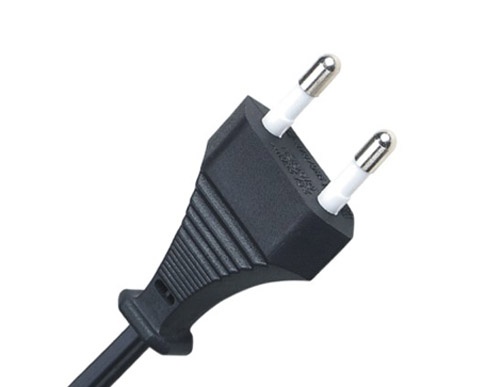

KSC 8305 Korean KTL certified two prong power cord plug |
|
| Product name : KSC 8305 Korean KTL certified two prong power cord plug |
| Item : K01 |
| Details : |
KSC 8305 Korean KTL certified two prong power cord plug. Rated up to 3A 250V. Built to the KS-C-8305 Korea plug standard. Our Korean power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Specifications
Items
Details
| Connector Standard |
Korea KS C 8305 2P plug (same as CEE7/16 standard Euro 2P plug) |
| Maximum Current rating |
2.5A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 2 wires |
| Available Wire Thickness |
0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Korea KTL certificate# SU04001-0001A , German VDE license# 40005197 and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
right angle IEC C7
(IEC C7) Korea
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
H03VVH2-F |
2.5A/250V |
|
 |
