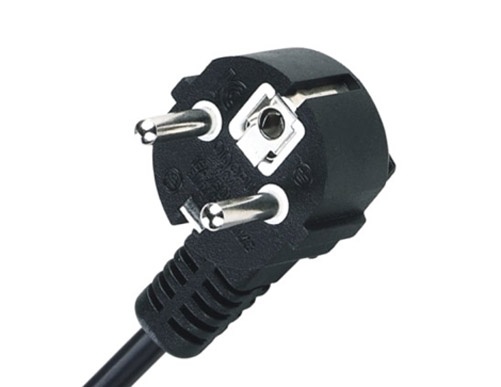

Korea three prong right angle power cord plug with KTL |
|
| Product name : Korea three prong right angle power cord plug with KTL |
| Item : K04 |
| Details : |
KSC 8305 Korea three prong power cord plug with KTL certification. Rated up to 16A 250V. Built to the Korea KSC 8305 power cord plug standard. Our Korean power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant
Specifications
Items
Details
| Connector Standard |
Korea KS C 8305 3P plug (same as Europe CEE7/7 standard Euro 3P plug) |
| Maximum Current rating |
16A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.5mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Korea KTL certificate , German VDE license and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
right angle IEC C13
(IEC C13) Korea
right angle IEC C5
(IEC C5) Korea
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
H05VV-F |
10/250 |
| 1.00mm² |
H05VV-F |
10/250 |
| 1.50mm² |
H05VV-F |
16/250 |
|
 |
[Next : K03]→
|
|
